Kegco Slim Kegerator Vending Machine Dual Tap Black Commercial Keg Dispenser

What is a KVM ®?

"KVM ®" is short for Kegerator Vending Machine - the world's first fully unattended, self-service beverage tap vending machine that offers a variety of craft beverages on tap.

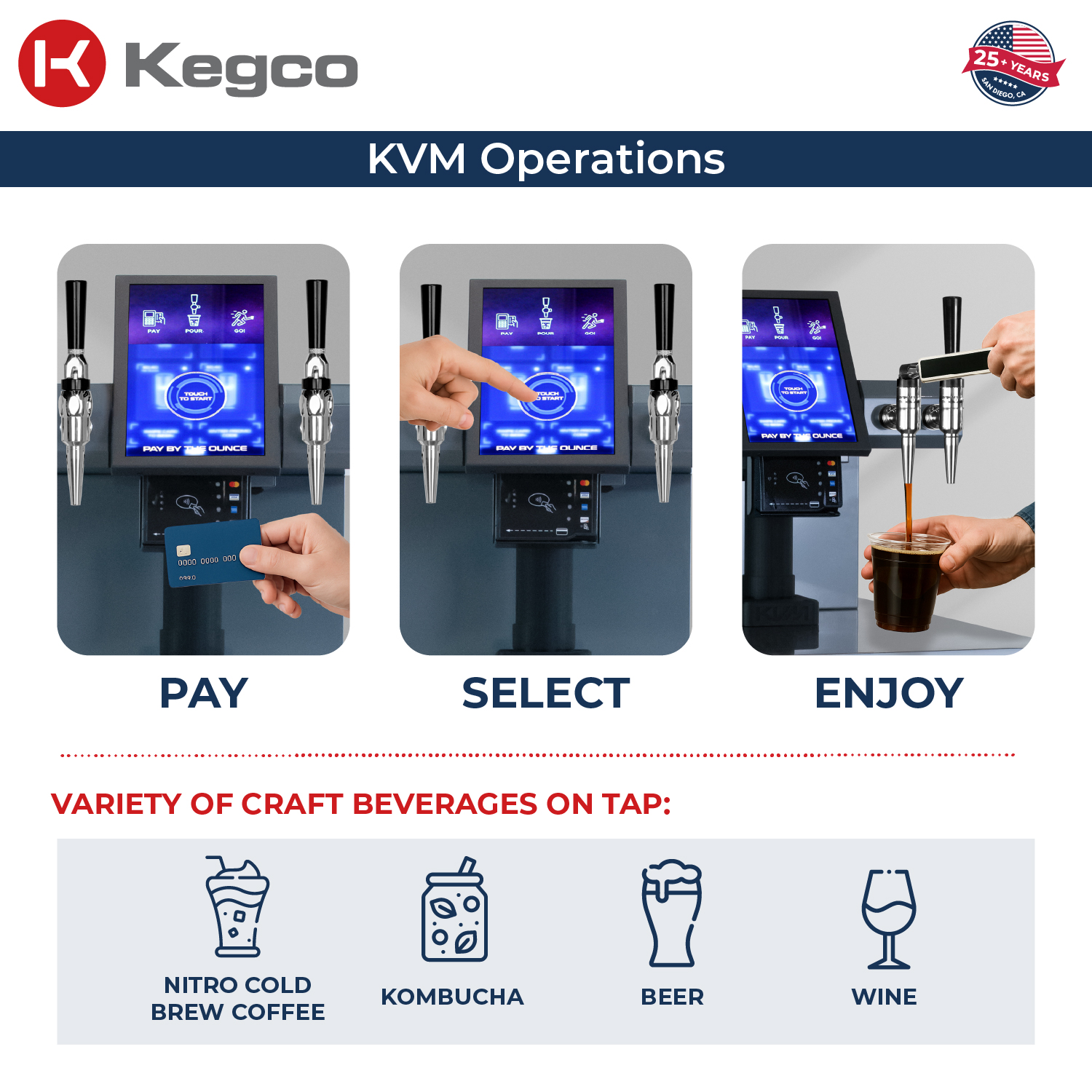

Craft Beverages on Tap

The KVM ® serves coffee-house quality beverages (such as nitro cold brew coffee, kombucha, teas, energy drinks, seltzers, and more) as offered through a variety of local and nationwide beverage vendors, brewers, and distributors.

Paid or Happy Hour(TM) Use

Through its integrated POS system, the KVM ® allows operators to charge by the ounce for the beverages poured through the KVM ®, or the KVM ® can be configured to provide craft beverages at no charge to customers for a designated period of time (like the "Happy Hour(TM)" events that are popular with apartment building clients).

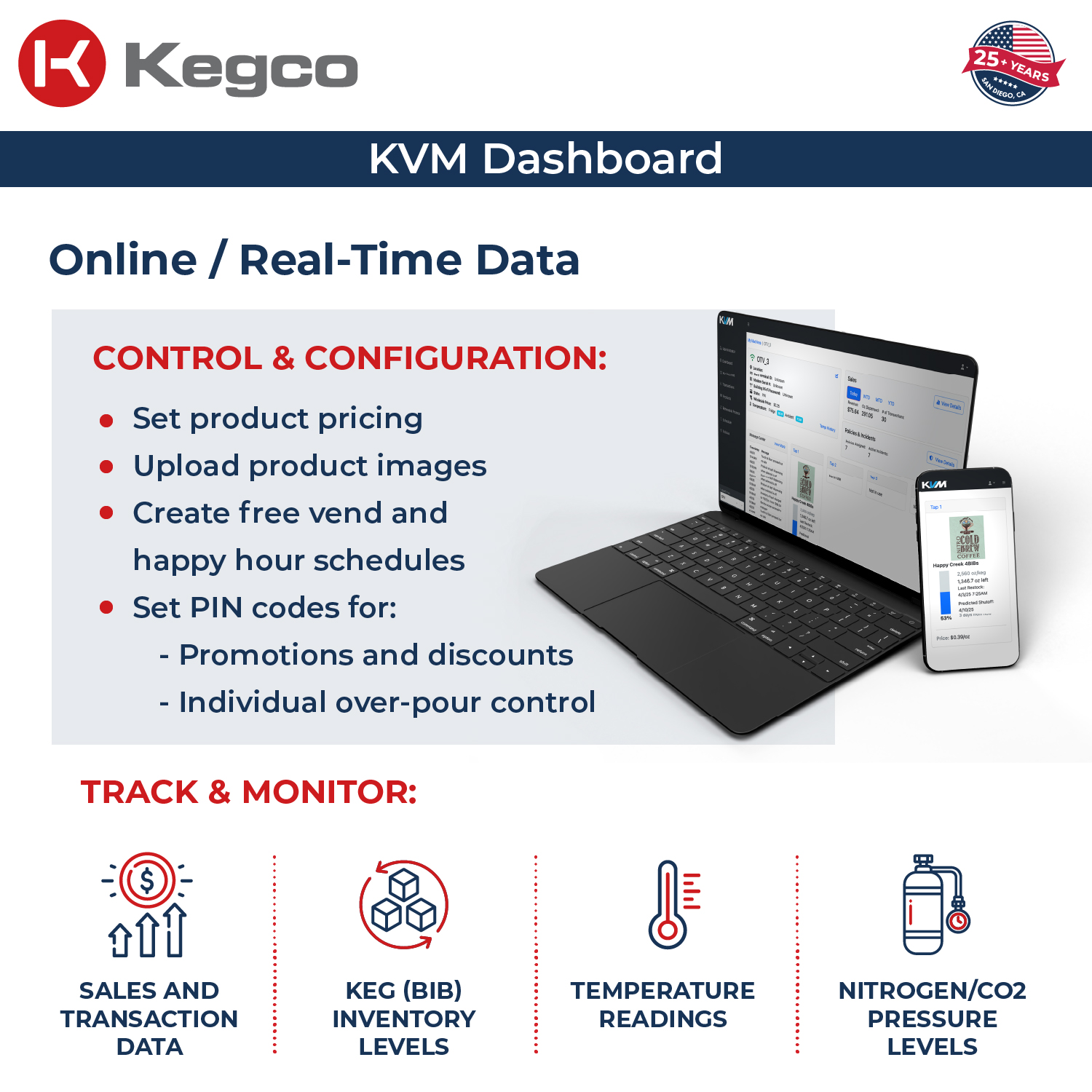

Comprehensive Data Tracking

The KVM ® is capable of remotely monitoring all sales and transaction data, product inventory levels, temperature data, and gas pressure levels. The KVM ® dashboard also allows you to set product pricing remotely, upload product images, and monitor connectivity logs.

Pin Code Promotions or Customer Pour Control

Proprietary software offers PIN code promotions that allow customers to enter a unique PIN code for free or discounted beverages (as provided by the operator or location), or the same PIN code functionality can be used to limit the number of ounces a customer pours during any given period, which is also popular with customer building clients that wish to set a daily Happy Hour(TM) limit for their residents.

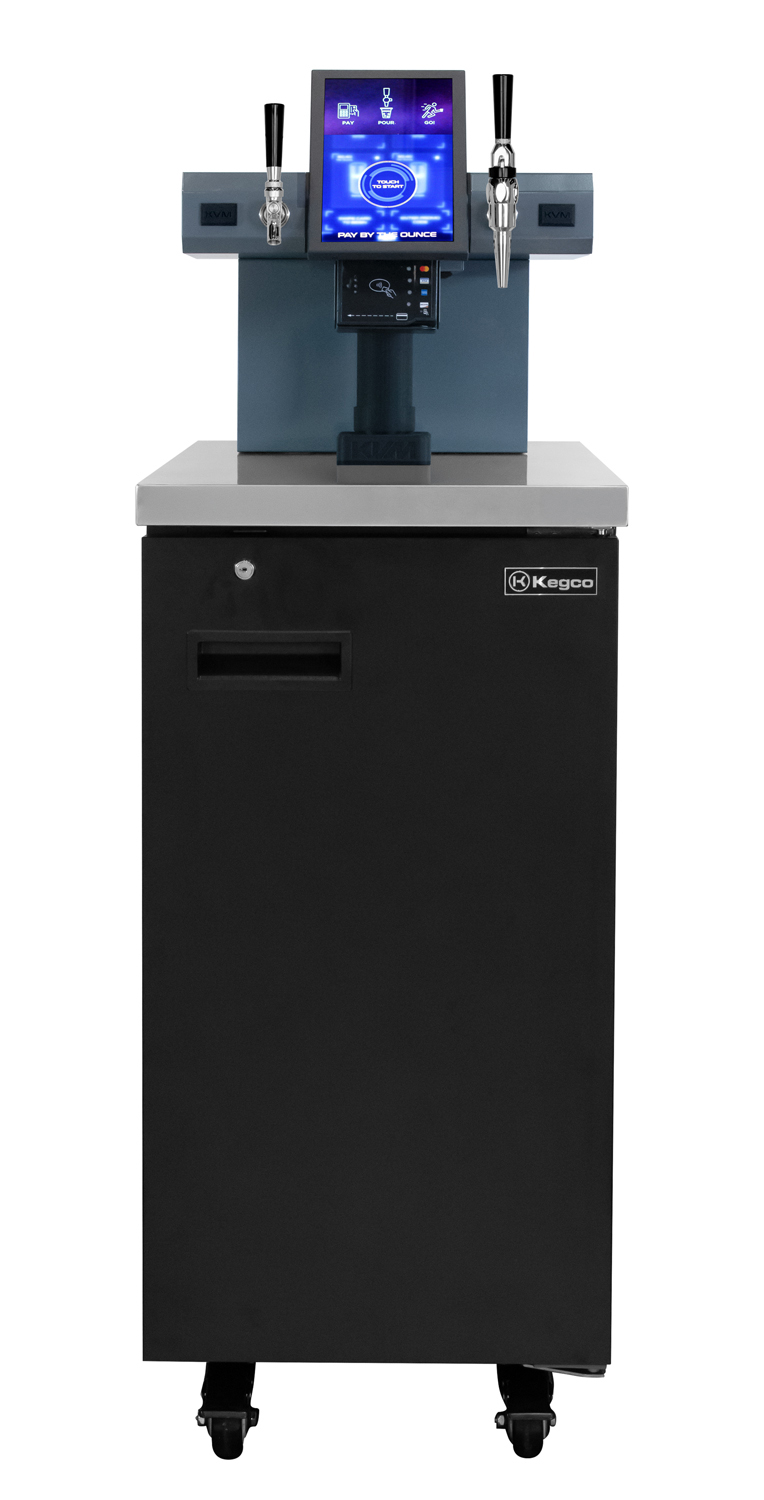

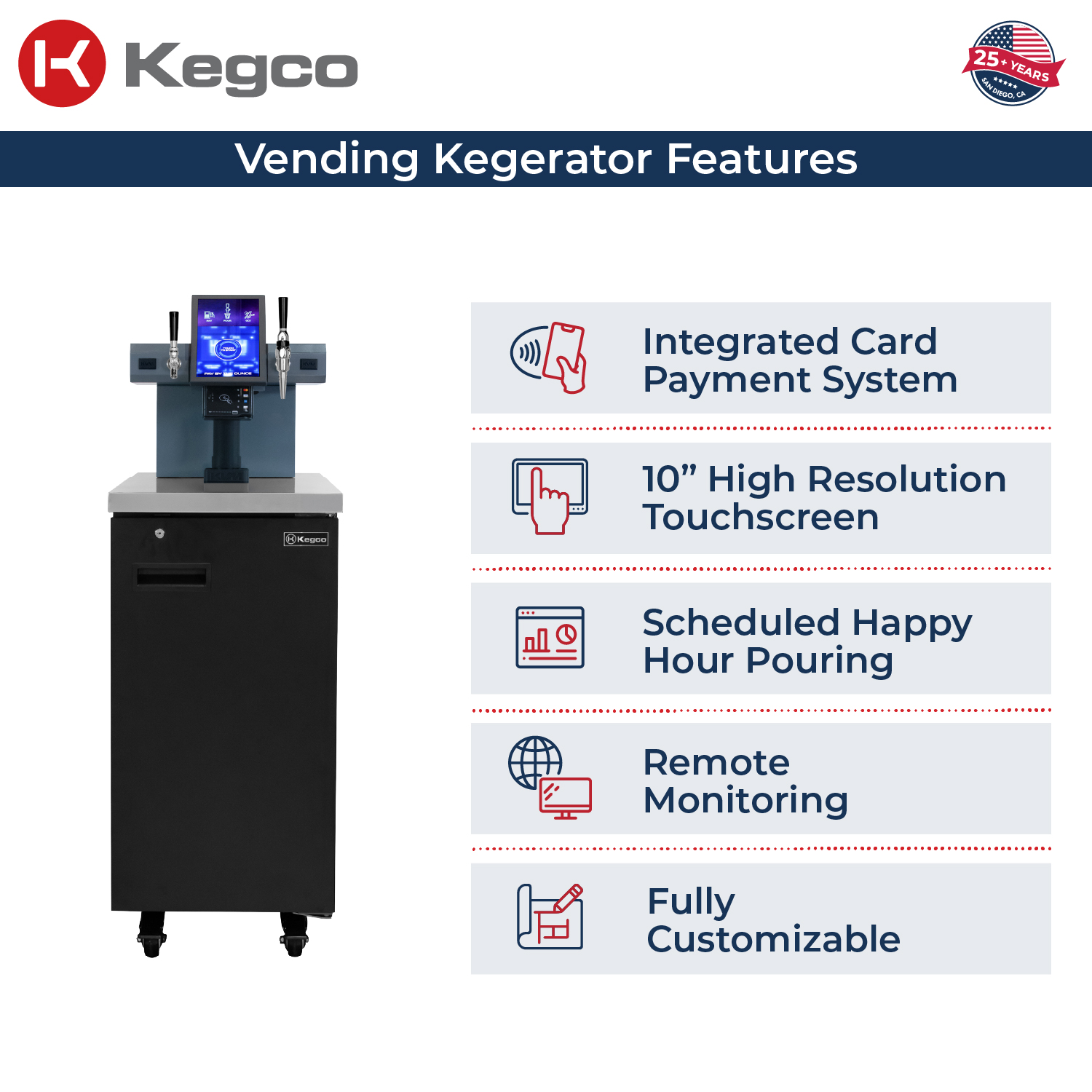

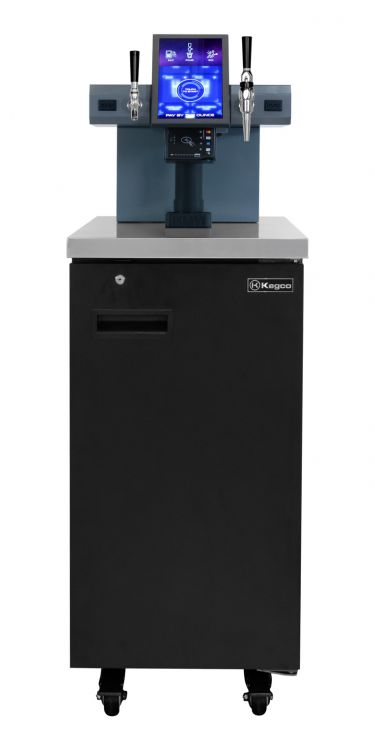

KVM ® Kegerator Vending Machine

• Self-serve pay-by-the-ounce beverage dispensing system

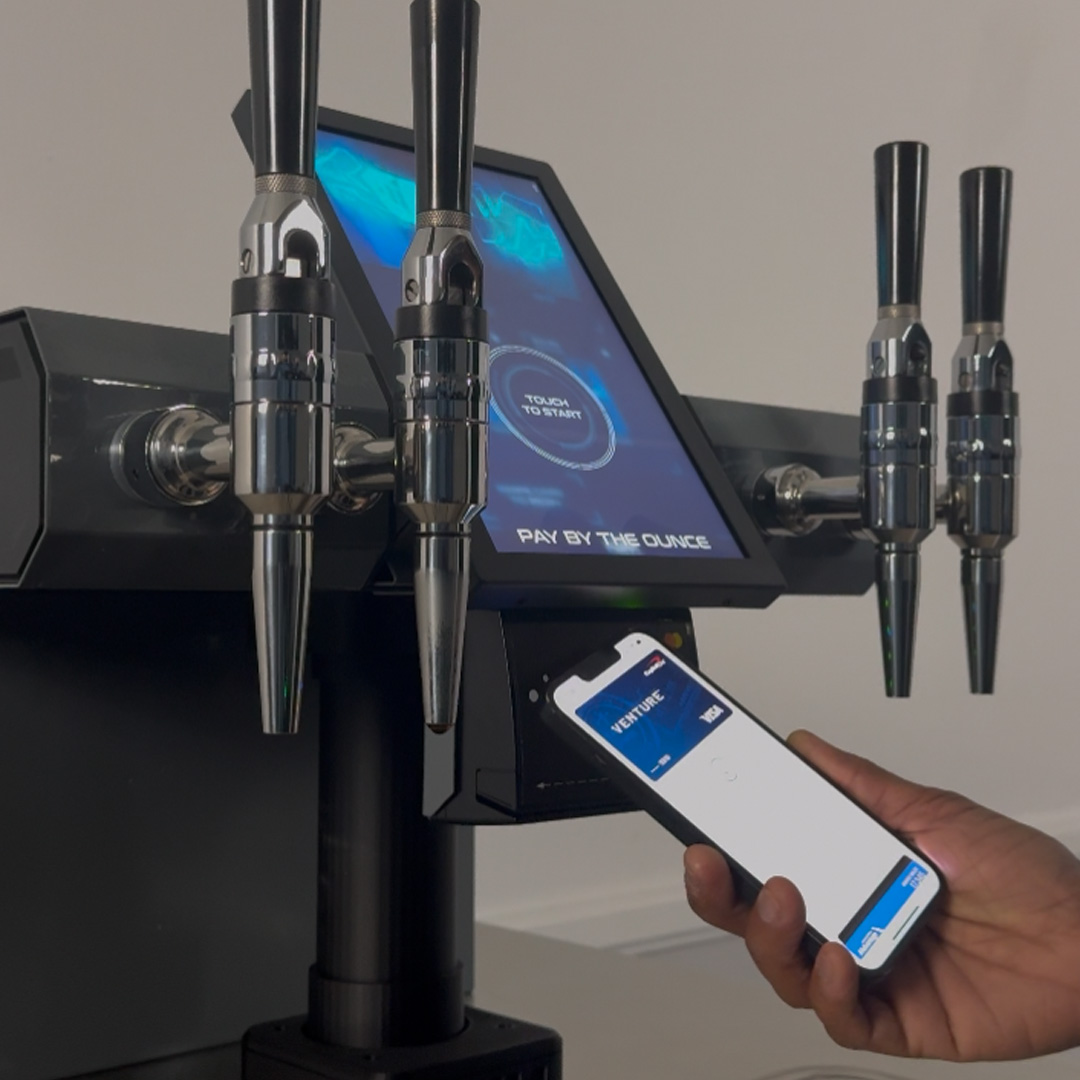

• Integrated payment system
• 10.1" touch screen
• Scheduling features allow for "free" and "paid" pouring
• Overpour Technology (TM) helps control and reduce budget
• Real-time dashboard tracking of keg/BIB inventory, sales, N2/CO2 levels, fridge temperature, connectivity, and more
• Promo code features allow for free and discounted drink promotions
• 2 tap dispense system
• No waterline needed
• Modern contemporary design
• Our KVM ® connects through Wifi, Ethernet, or external cellular device; if a customer has to use an external cellular device, the company we recommend is OptConnect (https://www.optconnect.com/)
• Credit card processing is done through our payment processing partner Cantaloupe Payment Systems (https://www.cantaloupe.com/)

TCK-17 Kegerator

• Usage: Built-In Under Counter - Indoor Use
• Exterior finishes: Black Vinyl over Steel
• Capacity: 5.47ft1/2
• 1/4 Barrel (7.75 Gallons) Keg: 1
• 1/4 slim Barrel (7.75 Gallons) Keg: 1
• 1/6 Barrel (5.23 Gallons) Keg: 2
• Home Brew Tanks (5.0 Gallons) Keg: 2
• Automatic door closing: Yes
• Number of wheels: 4 (2 universal + 2 directional)
• Temperature: 32~46a1/21/2
• Liquor outlet temperature: 37.4~44.6

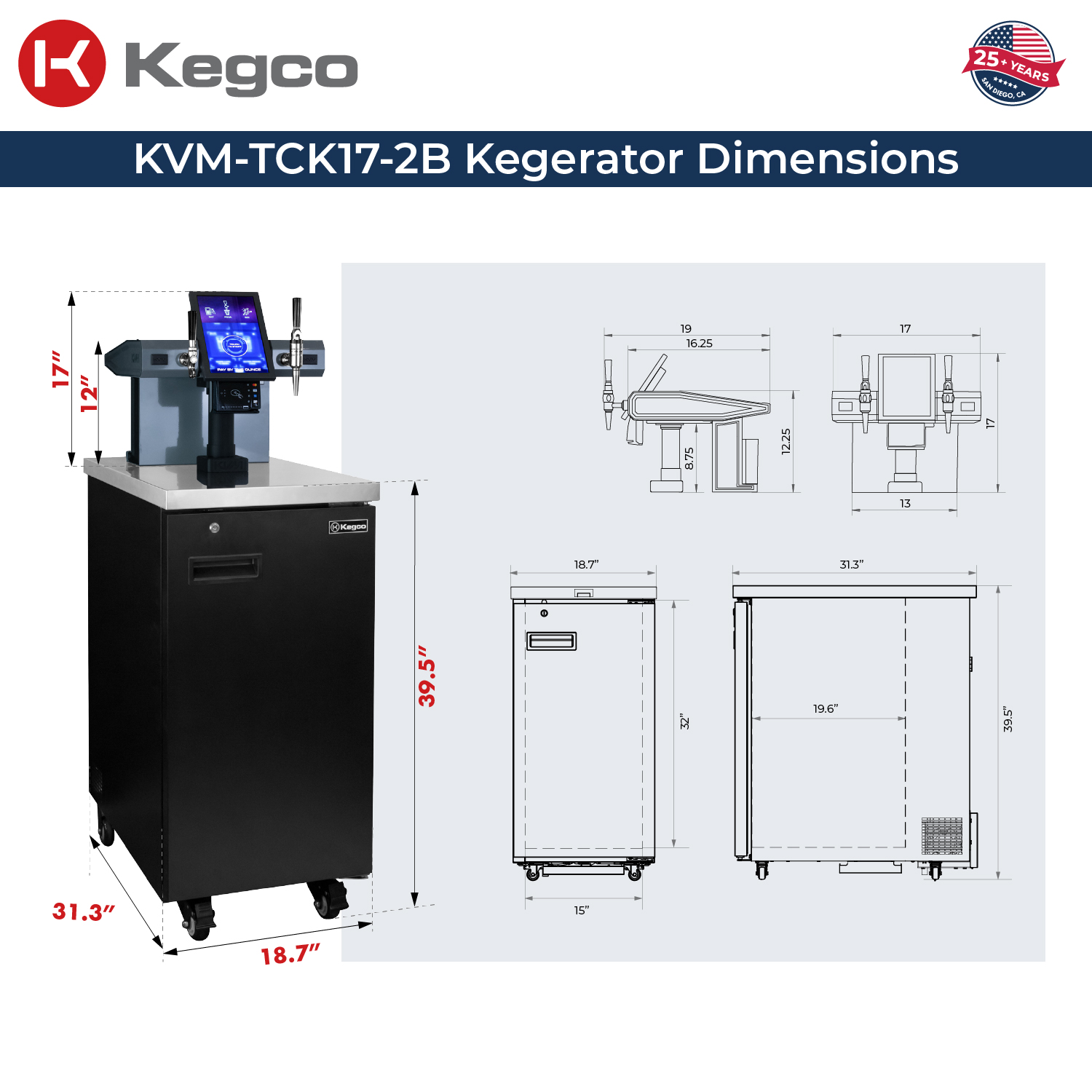

• External dimensions: 18-2/3"Wx31-1/3"Dx39-1/2"H
• Internal dimensions: 15"Wx19-5/8"Dx32"H
• Width when the door is opened: 47 5/6"
• Storage Cabinet Material: 304 S.S
• Defrost type: Automatic
• Shipping weight: 187 lbs.
• Unit weight: 143 lbs.
• Voltage(V): 110-115V/60Hz
• Running Amps: 0.88A
• Refrigerant: R600a
• Refrigerant weight: 1.40 OZ
• Certification: ETL,NSF
• Parts and manual maintenance: 1 Year
• Compressor warranty: 3 Year
• Number of labels: 2 Pcs
• Thermostat type: Mechanical Temperature Control
• Cooling system: Air cooling

Brand	Full Size	Pony Size	Quarter slim	5 Gallon D System	5 Gallon Ball Lock	5 Gallon Pin Lock	5 Gallon Strap Handle
Kegco K199	1	1	1	2	2	2	2
Kegco K209	1	1	1	2	3	3	3
Kegco K309	1	1	1	2	3	3	3
Kegco VSK-15	0	0	0	1	1	1	1
Kegco SLK-15	0	0	0	1	1	1	1
Kegco Z163	1	1	1	2	3	2	3
Kegco HK38	1	1	2	3	3	3	3
Kegco XCK-1	1	1	2	4	4	4	4
Summit SBC677	1	1	1	2	3	2	3
Summit SBC635	1	1	1	2	3	3	3
Haier Kegerator	1	1	2*	2	3	3	3
Danby Kegerator	1	1	1	2	3	2	3
All Marvel Kegerators	1	1	1	2	3	3	3
Perlick HP15T	0	0	0	1	1	1	1
Perlick HP24T	0	1	0	2	2	1	2
Perlick HC24T	0	1	0	2	2	1	2
UBC Kegmaster	1	1	2	4**	3	4**	4**
Beverage Air BM23	1	1	2	3	4	4	4
Everest EBD1	1	1	1	2	3	3	3

Brand	Full Size	Pony Size	Quarter slim
Kegco K199	1	1	1
Kegco K209	1	1	1
Kegco K309	1	1	1
Kegco VSK-15	0	0	0
Kegco SLK-15	0	0	0
Kegco Z163	1	1	1
Kegco HK38	1	1	2
Kegco XCK-1	1	1	2
Summit SBC677	1	1	1
Summit SBC635	1	1	1
Haier Kegerator	1	1	2*
Danby Kegerator	1	1	1
All Marvel Kegerators	1	1	1
Perlick HP15T	0	0	0
Perlick HP24T	0	1	0
Perlick HC24T	0	1	0
UBC Kegmaster	1	1	2
Beverage Air BM23	1	1	2
Everest EBD1	1	1	1

Brand	5 Gallon D System	5 Gallon Ball Lock	5 Gallon Pin Lock	5 Gallon Strap Handle
Kegco K199	2	2	2	2
Kegco K209	2	3	3	3
Kegco K309	2	3	3	3
Kegco VSK-15	1	1	1	1
Kegco SLK-15	1	1	1	1
Kegco Z163	2	3	2	3
Kegco HK38	3	3	3	3
Kegco XCK-1	4	4	4	4
Summit SBC677	2	3	2	3
Summit SBC635	2	3	3	3
Haier Kegerator	2	3	3	3
Danby Kegerator	2	3	2	3
All Marvel Kegerators	2	3	3	3
Perlick HP15T	1	1	1	1
Perlick HP24T	2	2	1	2
Perlick HC24T	2	2	1	2
UBC Kegmaster	4**	3	4**	4**
Beverage Air BM23	3	4	4	4
Everest EBD1	2	3	3	3

* - Using Wood riser for front keg

** - With external CO2 tank (3 with internal CO2 tank)

Labor - 12 Months

For one year from the date of purchase by the original owner, Kegco will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Kegco will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in this manual. Kegco will provide you with a reasonably similar replacement product that is either new or factory refurbished. In rental or commercial use, the warranty period is 90 days. All Kegco Appliances of 3.5 cubic feet capacity or less must be brought/sent to the appliance service shop for repair.

Parts - 60 Months

For the second through the fifth year from date of original purchase, Kegco Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges. In rental or commercial use, the limited compressor warranty is one year and nine months. Cost to move the appliance to the servicers’ shop and back to the user's home, as may be required, are the user's responsibility.

Additional Details

• Content losses of food or other, due to spoilage.
• Incidental or consequential damages.
• Parts and labor costs for the following will not be considered as warranty:
  • Door springs, and/or frames.
  • Inner door panels, door rails and/or door supports.
  • Light bulbs and/or plastic housing.
  • Plastic cabinet liners.
  • Punctured evaporator that voids the warranty on the complete sealed system.
  • Repairs performed by unauthorized servicers.
  • Shipping and handling costs associated with the replacement of the unit.
  • Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.
  • Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service call to remote areas, including the State of Alaska.
  • Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
  • Replacement of house fuses or resetting circuit breakers.
• Failure of the product if it is used for other than its intended purpose.
• This warranty does not apply outside the Continental USA.
