Kegco 24" Wide Outdoor Dual Tap All Stainless Steel Built-In Left Hinge Kegerator with Kit

• X-CLUSIVE Premium dispense components include 100% Stainless Steel Beer Contact, Premium Double Gauge Regulator, and Corrosion-resistant Electric Red CO2 Tank
• Outdoor left hinge kegerator can be built in undercounter to provide a seamless look to your backyard BBQ island or outdoor kitchen
• Utilizes forced air refrigeration and an air-cooled draft tower to ensure even cooling throughout the cabinet and ice cold beer with every pour
• At 3200 BTUs, it has a commercial grade compressor that is the most powerful in its class, providing unprecedented cooling for fast recovery and temperature pulldown
• The 32-59 degree Fahrenheit temperature range is the widest on the market and makes it versatile enough to serve ice cold beer or dispense wine

Take your BBQ's and pool parties to the next level with Kegco's HK38SSU-L-1 Left Hinge Digital Outdoor Undercounter Kegerator, the outdoor beer dispenser your backyard or patio has been missing! Featuring a versatile design, a fully equipped draft dispense system, and a durable stainless steel exterior designed to withstand the elements, this kegerator is the ideal way to enjoy cold beer, coffee, kombucha, or wine while enjoying some beautiful weather. At 3200 BTUs, it boasts the most powerful compressor in its class, delivering unprecedented cooling for fast recovery and temperature pulldown.

A premium kegerator should have only the highest quality components, so Kegco has included a premium direct draw kit with the HK38SSU-L-1 that has been specially designed to give you the most convenient and reliable draft beer parts at an unbeatable value.

To ensure that your beer only touches 100% stainless steel metal components for the ultimate in sanitation, the Kegco Exclusive 14" tall polished stainless steel beer tower comes with a stainless steel faucet, and the keg coupler features a stainless steel probe. Kegco has also included a Premium double gauge regulator that makes it easy to know when the corrosion-resistant, electric red epoxy-coated CO₂ tank need to be refilled. Thanks to the premium components included in this exclusive direct draw kit, you can feel confident that your beer is being served at its optimum quality.

Built-in Or Freestanding Use

The front-venting design allows you to build this kegerator into cabinetry for a seamless look that is easy to maintain and provides more floor space. A stainless steel guard rail is included to prevent glasses or mugs from sliding off the top in freestanding applications.

Digital Temperature Display

Easily adjust and view the set temperature, toggle between Celsius and Fahrenheit, or turn the interior light on and off with the push of a button. The controls can be accessed effortlessly at the front of the cabinet, out of the way of the dispense system.

Large Stainless Steel Interior

This kegerator measures 34-1/8"H x 24"W x 25"D and features a beautiful stainless steel interior that is more durable and easy-to-clean than the plastic liner found in many competing models. Enough floor space is provided to house a full size keg.

Converts to a Refrigerator

Two adjustable wire shelves are included, allowing you to convert these beer dispensers into refrigerators when you are in need to extra cold storage. Shelf adjustment is easily done in 1/2" increments so you can space them according to your needs.

Dual Faucet Draft Tower

14 inch stainless steel tower comes longer than most standard towers giving you more than enough space to fill up your pint glass or growler. Comes equipped with two metal faucets and is compatible with all standard keg couplers.

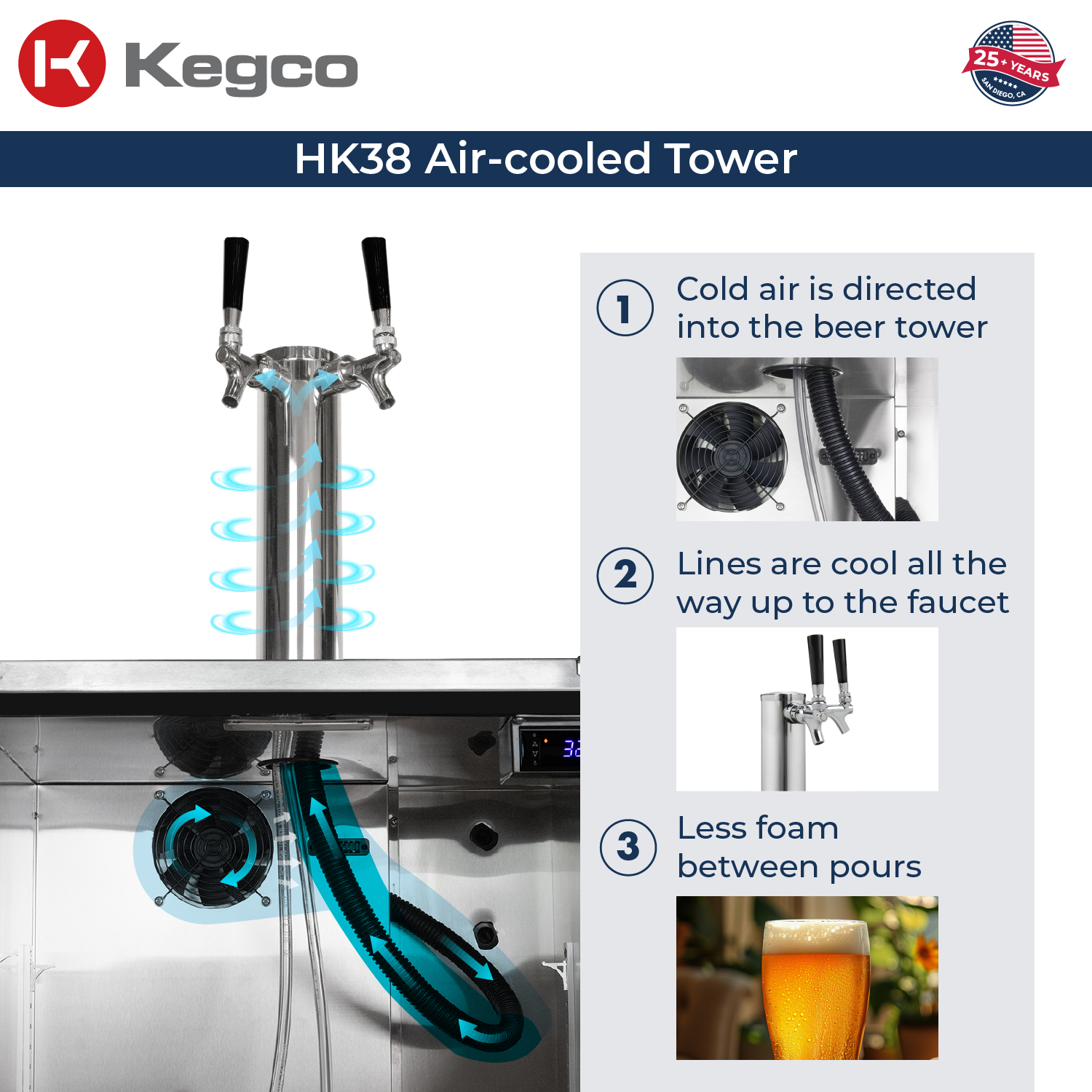

Air Cooled Tower Prevents Foam

Forced air refrigeration ensures that cold air is evenly distributed throughout the cabinet so there are no hot spots. Cold air is directed into the beer tower, ensuring that the lines are cool all the way up to the faucet so there's less foam between pours.

• Includes a brand new 5 lb. Aluminum CO₂ Tank with Electric Red Epoxy Finish
  This tank is produced from high strength aluminum alloy 6061-T6, a highly corrosion-resistant material. It features an eye-catching glossy powder coated epoxy finish in Electric Red that acts as an extra layer of protection against corrosion and wear. The service pressure is up to 1800 PSI/124 BAR with a test pressure of 3000 PSI/207 BAR. These cylinders are stamped with the required U.S. Department of Transportation and Transport Canada Markings. The 320 valves are CGA approved, and have a male thread for CO₂ regulators. An average fill is good for 5-6 kegs depending upon your fill.
• Includes Premium Double Gauge CO₂ Regulator with Air Splitter
  This two product regulator works with any CO₂ tank with a CGA-320 valve. The top gauge measures PSI, indicating how much CO₂ is inside of the kegs. The side gauge measures the remaining volume of CO₂ in the tank, so you'll know when it's about time to get the tank filled. This regulator has an air splitter with two shut-off valves to deliver CO₂ to one or two kegs at the same pressure, and features a large hand control that makes it easy to adjust the pressure inside of the keg.
• Includes two 5 foot lengths of 5/16" I.D. Blue Air Line Assembly with 4 Plastic Snap Clamps
  This standard length 5 foot 5/16" I.D. blue air/CO₂ tubing is made of thermoplastic vinyl hose (Super Vinyl). This tubing will not rot, swell, or dry out, and is unaffected by normal cleaning compounds. The air line assemblies come with two plastic snap clamps with a reusable clamp design.
• Includes two D system lever handle keg couplers that can tap all domestic kegs
  These commercial grade lever handle keg couplers work with all American "D" system Sankey kegs. They feature 55-psi pressure relief valves and nickel-plated forged brass bodies. To tap a keg, simply pull out and then down on the lever handle.
• Includes a Kegco Exclusive 14" Tall, 3" Diameter Dual Faucet Polished Stainless Steel Draft Tower
  This NSF-approved tower is a 3" diameter dual faucet metal draft tower made of polished stainless steel. It comes complete with two stainless steel faucets and two 5 foot lengths of 3/16" I.D. clear beer tubing. The tower is mounted using the gasket and four screws that are included. This Kegco Exclusive tower measures 14" tall, giving you an extra 2" of space over standard draft beer towers.
• All dispensing accessories are UL recognized components
• Converts into a refrigerator using 2 full-width shelves that can be adjusted in 1/2" increments
• Large enough to hold most full size kegs, including Coors and Miller. Interior height is a limitation, so kegs that are taller than the standard half barrel (23.25") may not fit with the keg coupler installed. We have run into this issue with certain German kegs along with the M system coupler, but most major brands in D and S System kegs will not be an issue.
• Holds (1) full-size keg, (2) quarter slim kegs), (3) 5 gallon commercial kegs, or (3) 5 gallon home brew kegs
• PLEASE NOTE: Will not hold 50L European kegs
• Maximum Ambient Temperature: 100 degrees Fahrenheit
• Minimum Ambient Temperature: The lowest temperature you want to store your kegs at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the external temperature.
• Durable all stainless steel exterior makes it suitable for outdoor use
• A perfect option for dispensing beer, soda, kombucha, wine or cold brew coffee
• Stainless steel guard rail helps prevent mugs and glasses from sliding off
• Stainless steel interior is more durable than the plastic liner found in most kegerators
• Plugs into standard home outlet
• UL, NSF-7 & ETL Sanitation listed

Brand	Full Size	Pony Size	Quarter slim	5 Gallon D System	5 Gallon Ball Lock	5 Gallon Pin Lock	5 Gallon Strap Handle
Kegco K199	1	1	1	2	2	2	2
Kegco K209	1	1	1	2	3	3	3
Kegco K309	1	1	1	2	3	3	3
Kegco VSK-15	0	0	0	1	1	1	1
Kegco SLK-15	0	0	0	1	1	1	1
Kegco Z163	1	1	1	2	3	2	3
Kegco HK38	1	1	2	3	3	3	3
Kegco XCK-1	1	1	2	4	4	4	4
Summit SBC677	1	1	1	2	3	2	3
Summit SBC635	1	1	1	2	3	3	3
Haier Kegerator	1	1	2*	2	3	3	3
Danby Kegerator	1	1	1	2	3	2	3
All Marvel Kegerators	1	1	1	2	3	3	3
Perlick HP15T	0	0	0	1	1	1	1
Perlick HP24T	0	1	0	2	2	1	2
Perlick HC24T	0	1	0	2	2	1	2
UBC Kegmaster	1	1	2	4**	3	4**	4**
Beverage Air BM23	1	1	2	3	4	4	4
Everest EBD1	1	1	1	2	3	3	3

Brand	Full Size	Pony Size	Quarter slim
Kegco K199	1	1	1
Kegco K209	1	1	1
Kegco K309	1	1	1
Kegco VSK-15	0	0	0
Kegco SLK-15	0	0	0
Kegco Z163	1	1	1
Kegco HK38	1	1	2
Kegco XCK-1	1	1	2
Summit SBC677	1	1	1
Summit SBC635	1	1	1
Haier Kegerator	1	1	2*
Danby Kegerator	1	1	1
All Marvel Kegerators	1	1	1
Perlick HP15T	0	0	0
Perlick HP24T	0	1	0
Perlick HC24T	0	1	0
UBC Kegmaster	1	1	2
Beverage Air BM23	1	1	2
Everest EBD1	1	1	1

Brand	5 Gallon D System	5 Gallon Ball Lock	5 Gallon Pin Lock	5 Gallon Strap Handle
Kegco K199	2	2	2	2
Kegco K209	2	3	3	3
Kegco K309	2	3	3	3
Kegco VSK-15	1	1	1	1
Kegco SLK-15	1	1	1	1
Kegco Z163	2	3	2	3
Kegco HK38	3	3	3	3
Kegco XCK-1	4	4	4	4
Summit SBC677	2	3	2	3
Summit SBC635	2	3	3	3
Haier Kegerator	2	3	3	3
Danby Kegerator	2	3	2	3
All Marvel Kegerators	2	3	3	3
Perlick HP15T	1	1	1	1
Perlick HP24T	2	2	1	2
Perlick HC24T	2	2	1	2
UBC Kegmaster	4**	3	4**	4**
Beverage Air BM23	3	4	4	4
Everest EBD1	2	3	3	3

* - Using Wood riser for front keg

** - With external CO2 tank (3 with internal CO2 tank)

Labor - 12 Months

For one year from the date of purchase by the original owner, Kegco will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Kegco will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in this manual. Kegco will provide you with a reasonably similar replacement product that is either new or factory refurbished. In rental or commercial use, the warranty period is 90 days. All Kegco Appliances of 3.5 cubic feet capacity or less must be brought/sent to the appliance service shop for repair.

Parts - 60 Months

For the second through the fifth year from date of original purchase, Kegco Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges. In rental or commercial use, the limited compressor warranty is one year and nine months. Cost to move the appliance to the servicers’ shop and back to the user's home, as may be required, are the user's responsibility.

Additional Details

• Content losses of food or other, due to spoilage.
• Incidental or consequential damages.
• Parts and labor costs for the following will not be considered as warranty:
  • Door springs, and/or frames.
  • Inner door panels, door rails and/or door supports.
  • Light bulbs and/or plastic housing.
  • Plastic cabinet liners.
  • Punctured evaporator that voids the warranty on the complete sealed system.
  • Repairs performed by unauthorized servicers.
  • Shipping and handling costs associated with the replacement of the unit.
  • Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.
  • Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service call to remote areas, including the State of Alaska.
  • Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
  • Replacement of house fuses or resetting circuit breakers.
• Failure of the product if it is used for other than its intended purpose.
• This warranty does not apply outside the Continental USA.
