Summit 24" Wide Single Tap Black Built-In Commercial Kegerator

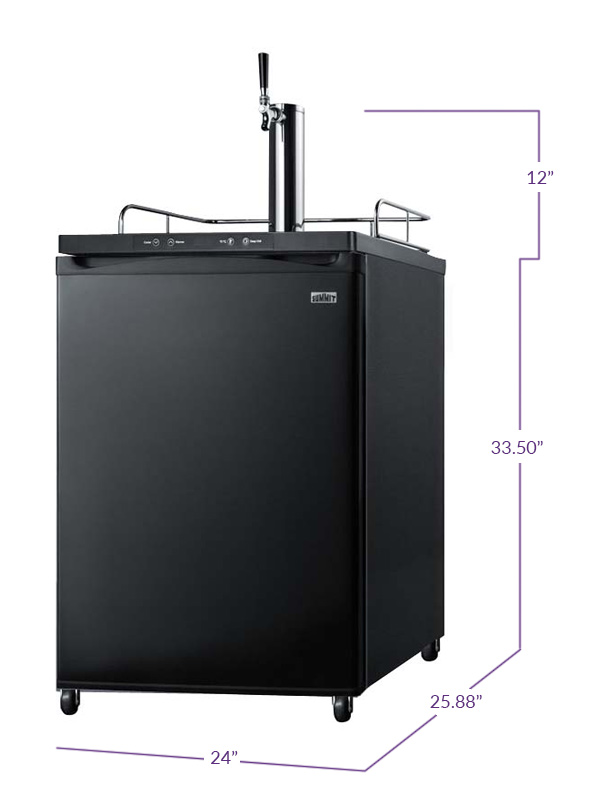

The SBC635MBI7 is a full-sized beer dispenser that can store a full half barrel keg or two 1/6 barrels to best accommodate all tastes. It features a front-breathing design for built-in installation under counters, with a stunning jet black exterior finish. The surface includes a removable drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. The user-reversible door swing makes it easy to accommodate any locations setup. This unit is height adjustable from 33 1/2" to 34" to best fit your under counter space. Please note: that the door does not open in its own radius. When planning your cutout, if the unit is mounted against a wall or flush under cabinetry, you will need between 25 and 25 1/4" width for proper ventilation.

Automatic defrost operation ensures minimum user maintenance inside the 5.6 cu.ft. interior. A digital thermostat makes it easy to manage the temperature at the touch of a button. The external digital display shows the temperature in Celsius or Fahrenheit to ensure your beer is stored exactly how you like it. Our American Sankey single tap kit includes all the accessories you need for draft service, including a 5 lb. CO₂ tank and regulator. The floor is reinforced with a steel cover for added durability when loading kegs.

WARNING: This product has Brass components. Brass alloys are known to contain trace amounts of Lead, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

• Commercially approved - ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
• Full-sized beer dispenser - Large 5.6 cu.ft. interior can accept a full half barrel keg, two 1/6 barrel kegs, or a pony keg
• Built-in capability - Make the best use of space by installing your appliance under the counter;
  NOTE: if installing flush with wall or cabinets, unit will require extra space due to the door design. Width should be 25" to 25 1/4". For more information, see the user manual
• Tap Kit - Includes a 5 lb. CO₂ tank and regulator, draft arm, Sankey American tap, and connection hardware
• Automatic defrost - Reduced user maintenance with auto defrost operation
• Digital thermostat - Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit
• Ideal beer temperature - Operates between 33°F and 50°F to keep a variety of beers stored at just the right serving temperature
• Fully finished black cabinet - Allows the beer dispenser to be used freestanding
• Reversible door - User-reversible door swing for added flexibility
• Casters included (ship unassembled) - To make the beer dispenser portable, install this set of 2 1/2" high locking casters
• Top guard rail (ships unassembled) - Attractive chrome guard rail helps to reduce spills and neaten usage
• Stainless steel floor cover - Interior includes steel cover to protect the floor when loading kegs
• Drip tray - Removable drip tray catches spills to help contain the mess
• Deep Chill function - Great for getting faster cooling results when loading your first keg
• 100% CFC free - Environmentally friendly design without ozone-damaging chemicals

Brand	Full Size	Pony Size	Quarter slim	5 Gallon D System	5 Gallon Ball Lock	5 Gallon Pin Lock	5 Gallon Strap Handle
Kegco K199	1	1	1	2	2	2	2
Kegco K209	1	1	1	2	3	3	3
Kegco K309	1	1	1	2	3	3	3
Kegco VSK-15	0	0	0	1	1	1	1
Kegco SLK-15	0	0	0	1	1	1	1
Kegco Z163	1	1	1	2	3	2	3
Kegco HK38	1	1	2	3	3	3	3
Kegco XCK-1	1	1	2	4	4	4	4
Summit SBC677	1	1	1	2	3	2	3
Summit SBC635	1	1	1	2	3	3	3
Haier Kegerator	1	1	2*	2	3	3	3
Danby Kegerator	1	1	1	2	3	2	3
All Marvel Kegerators	1	1	1	2	3	3	3
Perlick HP15T	0	0	0	1	1	1	1
Perlick HP24T	0	1	0	2	2	1	2
Perlick HC24T	0	1	0	2	2	1	2
UBC Kegmaster	1	1	2	4**	3	4**	4**
Beverage Air BM23	1	1	2	3	4	4	4
Everest EBD1	1	1	1	2	3	3	3

Brand	Full Size	Pony Size	Quarter slim
Kegco K199	1	1	1
Kegco K209	1	1	1
Kegco K309	1	1	1
Kegco VSK-15	0	0	0
Kegco SLK-15	0	0	0
Kegco Z163	1	1	1
Kegco HK38	1	1	2
Kegco XCK-1	1	1	2
Summit SBC677	1	1	1
Summit SBC635	1	1	1
Haier Kegerator	1	1	2*
Danby Kegerator	1	1	1
All Marvel Kegerators	1	1	1
Perlick HP15T	0	0	0
Perlick HP24T	0	1	0
Perlick HC24T	0	1	0
UBC Kegmaster	1	1	2
Beverage Air BM23	1	1	2
Everest EBD1	1	1	1

Brand	5 Gallon D System	5 Gallon Ball Lock	5 Gallon Pin Lock	5 Gallon Strap Handle
Kegco K199	2	2	2	2
Kegco K209	2	3	3	3
Kegco K309	2	3	3	3
Kegco VSK-15	1	1	1	1
Kegco SLK-15	1	1	1	1
Kegco Z163	2	3	2	3
Kegco HK38	3	3	3	3
Kegco XCK-1	4	4	4	4
Summit SBC677	2	3	2	3
Summit SBC635	2	3	3	3
Haier Kegerator	2	3	3	3
Danby Kegerator	2	3	2	3
All Marvel Kegerators	2	3	3	3
Perlick HP15T	1	1	1	1
Perlick HP24T	2	2	1	2
Perlick HC24T	2	2	1	2
UBC Kegmaster	4**	3	4**	4**
Beverage Air BM23	3	4	4	4
Everest EBD1	2	3	3	3




* - Using Wood riser for front keg

** - With external CO2 tank (3 with internal CO2 tank)

UPC: 761101051604
