Kegco 24" Wide Outdoor Single Tap All Stainless Steel Built-In Left Hinge Kegerator with Kit

• Outdoor left hinge kegerator can be built in undercounter to provide a seamless look to your backyard BBQ island or outdoor kitchen
• Premium dispense components include 100% Stainless Steel Beer Contact, Premium Double Gauge Regulator, and Corrosion-resistant Electric Red CO2 Tank
• Forced air refrigeration and an air cooled tower ensure even cooling throughout the cabinet and ice cold beer with every pour
• At 3200 BTUs, the commercial grade compressor is the most powerful in its class and delivers unbeatable cooling for fast recovery and temperature pulldown
• This versatile kegerator features a wide 32-59 F temperature range that makes it suitable for serving ice cold beer or dispensing wine at its ideal temperature

Built-in Or Freestanding Use

The front-venting design allows you to build this kegerator into cabinetry for a seamless look that is easy to maintain and provides more floor space. A stainless steel guard rail is included to prevent glasses or mugs from sliding off the top in freestanding applications.

Digital Temperature Display

Easily adjust and view the set temperature, toggle between Celsius and Fahrenheit, or turn the interior light on and off with the push of a button. The controls can be accessed effortlessly at the front of the cabinet, out of the way of the dispense system.

Stainless Steel Interior

The beautiful stainless steel interior is more durable than the plastic liner found in many competing models and easy to clean. Enough floor space is provided to house a full size keg, two quarter slim kegs or up to three 5 gallon kegs for a variety of configurations. PLEASE NOTE: Will not hold 50L European kegs.

Converts to a Refrigerator

Two adjustable wire shelves are included, allowing you to convert these beer dispensers into refrigerators when you are in need to extra cold storage. Shelf adjustment is easily done in 1/2" increments so you can space them according to your needs.

Air Cooled Tower Prevents Foam

Forced air refrigeration ensures that cold air is evenly distributed throughout the cabinet so there are no hot spots. Cold air is directed into the beer tower, ensuring that the lines are cool all the way up to the faucet so there's less foam between pours.

Locking Stainless Steel Door

The attractive stainless steel door includes a lock to keep the contents secure. The kegerator comes equipped with a door alarm that will sound if the door is left open for too long.

• Includes a brand new 5 lb. Aluminum CO₂ Tank with Electric Red Epoxy Finish
  This tank is produced from high strength aluminum alloy 6061-T6, a highly corrosion-resistant material. It features an eye-catching glossy powder coated epoxy finish in electric red that acts as an extra layer of protection against corrosion and wear. The service pressure is up to 1800 PSI/124 BAR with a test pressure of 3000 PSI/207 BAR. These cylinders are stamped with the required U.S. Department of Transportation and Transport Canada Markings. The 320 valves are CGA approved, and have a male thread for CO₂ Regulators. An average fill is good for 5-6 kegs depending upon your fill.
• Includes Premium Double Gauge CO₂ Regulator
  The regulator works with any CO₂ tank with a CGA-320 valve and measures PSI, as well as the volume of the CO₂ gas in the cylinder. It has a pressure release valve and a large hand control which makes it easy to adjust the pressure inside of the keg.
• Includes 5 feet of 5/16" I.D. Blue Air Line Assembly with 2 Snap Clamps
  This standard length 5 foot 5/16" I.D. blue air/CO₂ tubing is made of thermoplastic vinyl hose (Super Vinyl). This tubing will not rot, swell, or dry out, and is unaffected by normal cleaning compounds. The air line assembly comes with two plastic snap clamps with a reusable clamp design.
• Includes a D system lever handle keg coupler that can tap all domestic kegs
  This commercial grade lever handle keg coupler works with all American "D" system Sankey kegs. It features a 55-psi pressure relief valve and a nickel-plated forged brass body. To tap a keg, simply pull out and then down on the lever handle.

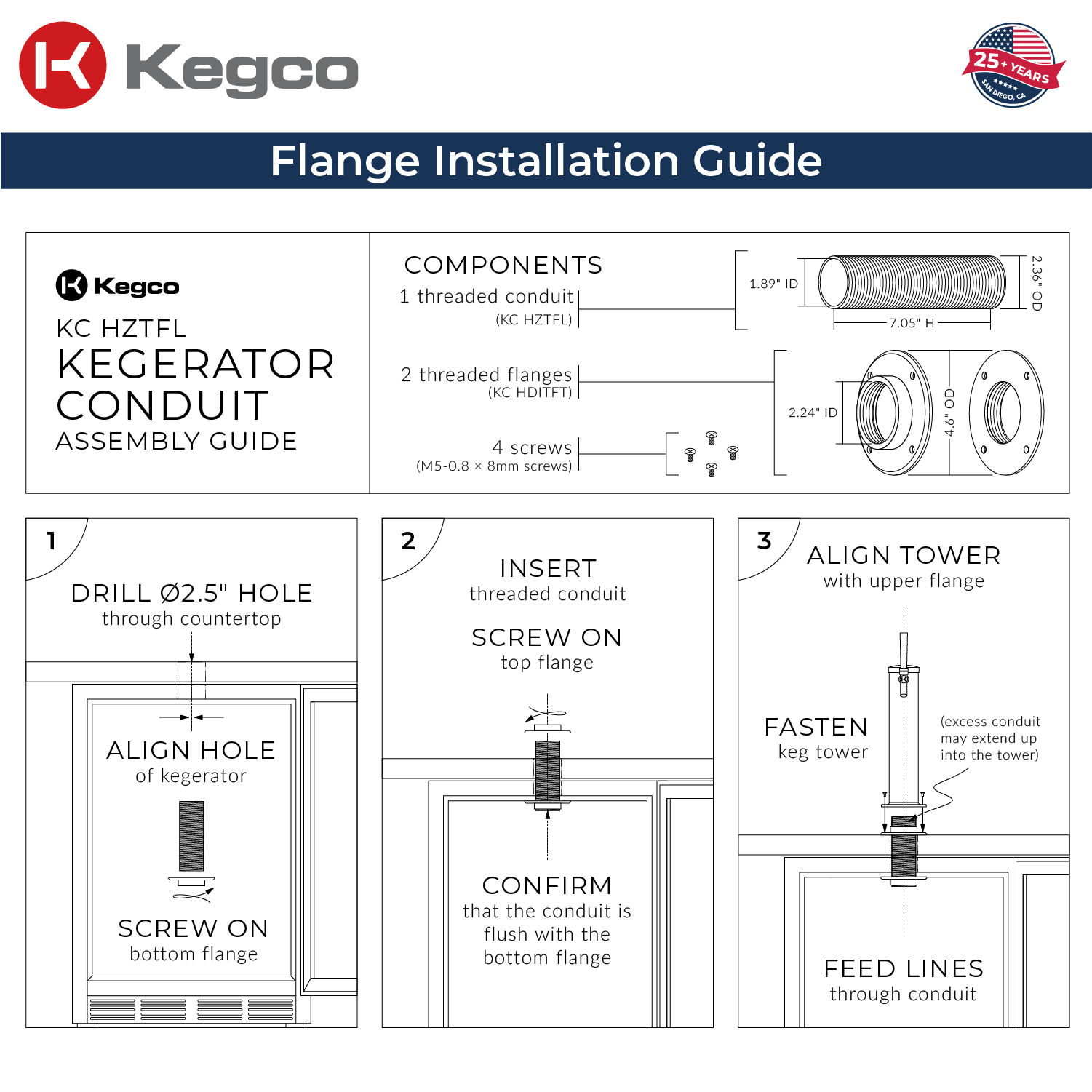

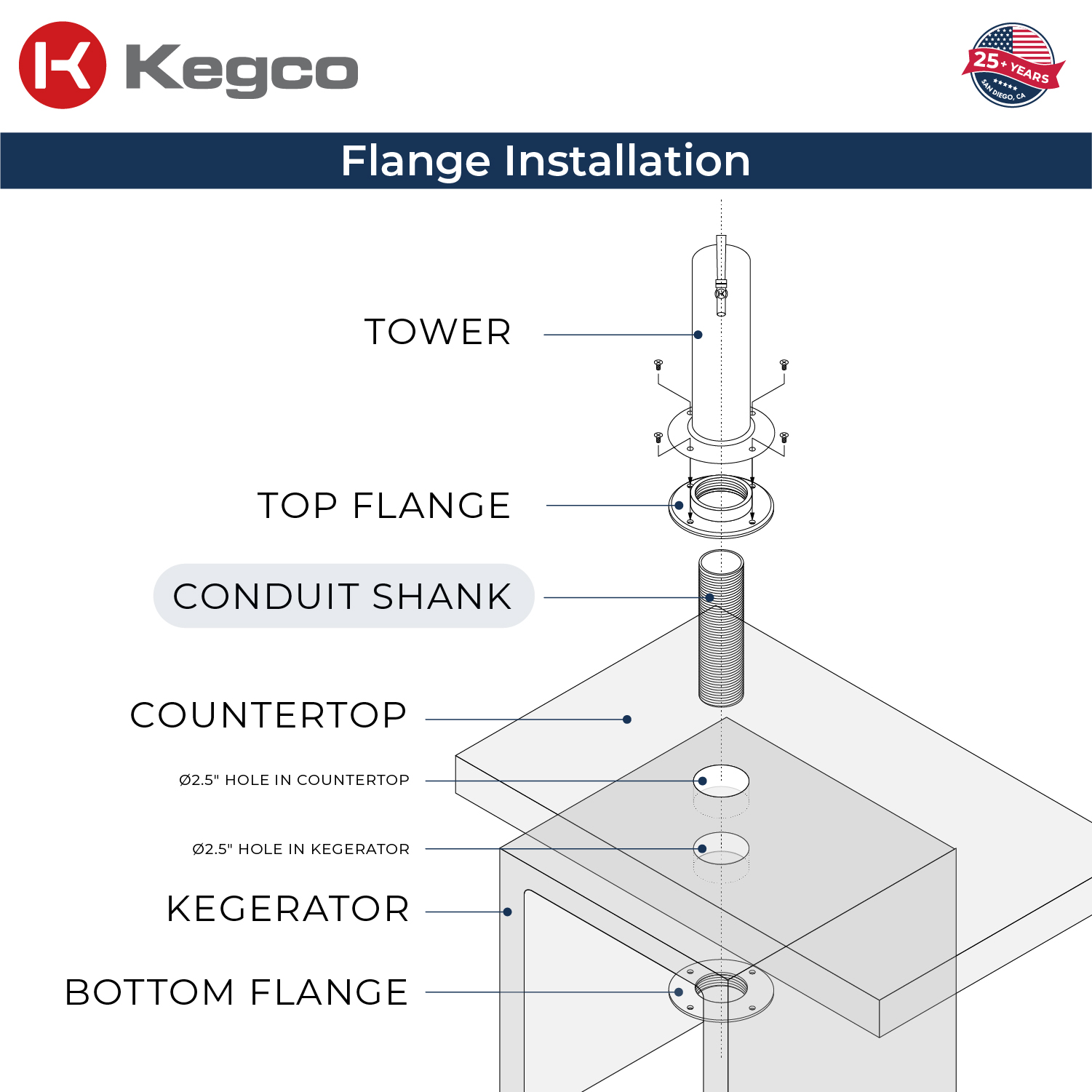

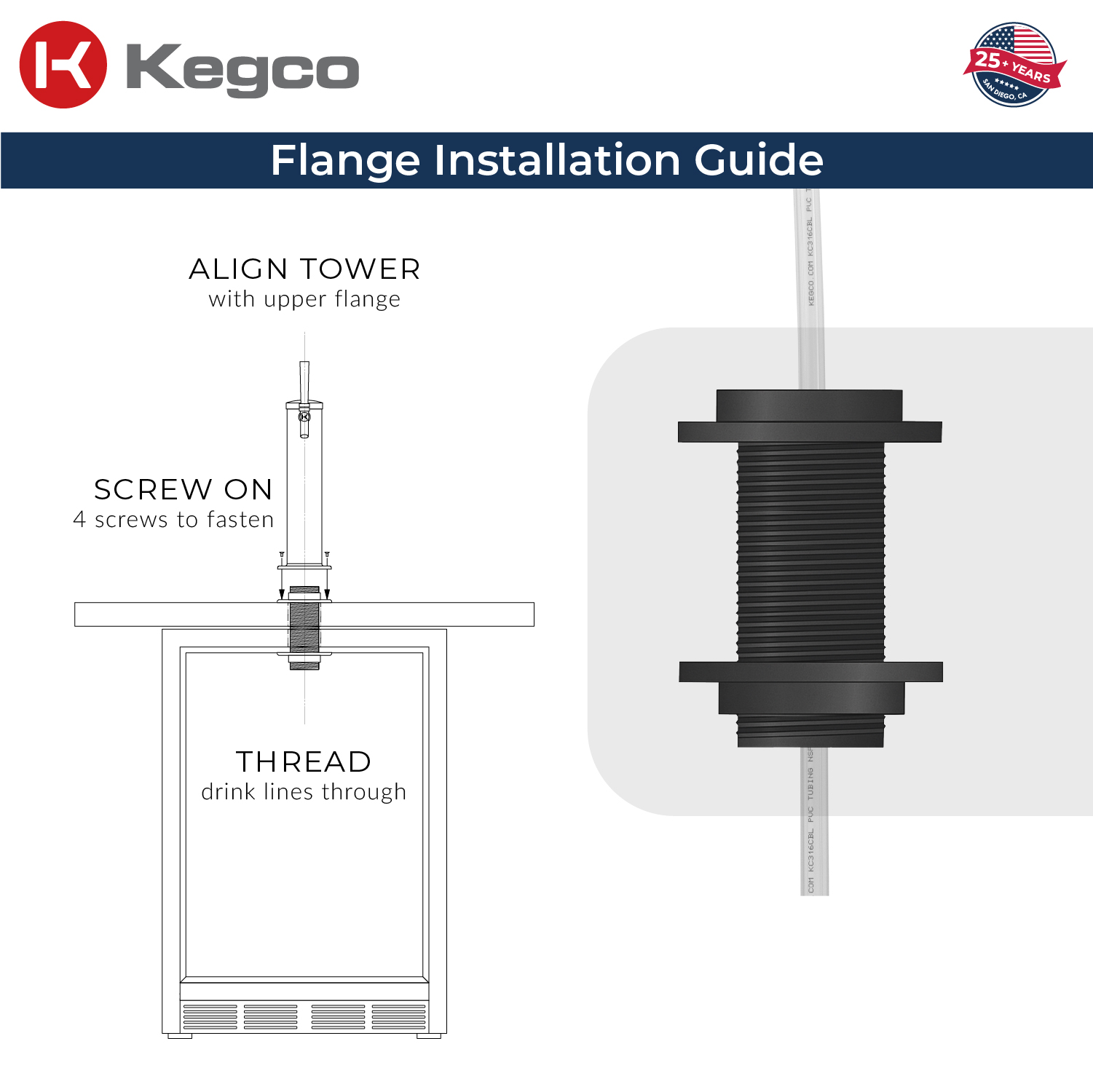

• Includes a Kegco Exclusive 14" Tall, 3" Diameter Polished Stainless Steel Draft Tower
  This NSF-approved tower is a 3" diameter single faucet metal draft tower made of polished stainless steel and includes 5 feet of 3/16" I.D. clear beer tubing. The faucet, shank, and fittings are all made of 304 grade stainless steel for the ultimate in sanitation. The tower is mounted using the gasket and four screws that are included. This Kegco Exclusive tower measures 14" tall, giving you an extra 2" of space over standard draft beer towers.
• All dispensing accessories are UL recognized components
• Converts into a refrigerator using 2 full-width shelves that can be adjusted in 1/2" increments
• Large enough to hold most full size kegs, including Coors and Miller. Interior height is a limitation, so kegs that are taller than the standard half barrel (23.25") may not fit with the keg coupler installed. We have run into this issue with certain German kegs along with the M system coupler, but most major brands in D and S System kegs will not be an issue.
• Holds (1) full-size keg, (2) quarter slim kegs, (3) 5 gallon commercial kegs, or (3) 5 gallon home brew kegs
• PLEASE NOTE: Will not hold 50L European kegs
• Durable all stainless steel exterior makes it suitable for outdoor use
• Digital temperature control keeps temperature between 32-59 degrees Fahrenheit
• Maximum Ambient Temperature: 100 degrees Fahrenheit
• Minimum Ambient Temperature: The lowest temperature you want to store your kegs at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the external temperature.
• A perfect option for dispensing beer, soda, kombucha, wine or cold brew coffee
• Stainless steel guard rail helps prevent mugs and glasses from sliding off
• Stainless steel interior is more durable than the plastic liner found in most kegerators
• Plugs into standard home outlet
• UL, NSF-7 & ETL Sanitation listed

Brand	Full Size	Pony Size	Quarter slim	5 Gallon D System	5 Gallon Ball Lock	5 Gallon Pin Lock	5 Gallon Strap Handle
Kegco K199	1	1	1	2	2	2	2
Kegco K209	1	1	1	2	3	3	3
Kegco K309	1	1	1	2	3	3	3
Kegco VSK-15	0	0	0	1	1	1	1
Kegco SLK-15	0	0	0	1	1	1	1
Kegco Z163	1	1	1	2	3	2	3
Kegco HK38	1	1	2	3	3	3	3
Kegco XCK-1	1	1	2	4	4	4	4
Summit SBC677	1	1	1	2	3	2	3
Summit SBC635	1	1	1	2	3	3	3
Haier Kegerator	1	1	2*	2	3	3	3
Danby Kegerator	1	1	1	2	3	2	3
All Marvel Kegerators	1	1	1	2	3	3	3
Perlick HP15T	0	0	0	1	1	1	1
Perlick HP24T	0	1	0	2	2	1	2
Perlick HC24T	0	1	0	2	2	1	2
UBC Kegmaster	1	1	2	4**	3	4**	4**
Beverage Air BM23	1	1	2	3	4	4	4
Everest EBD1	1	1	1	2	3	3	3

Brand	Full Size	Pony Size	Quarter slim
Kegco K199	1	1	1
Kegco K209	1	1	1
Kegco K309	1	1	1
Kegco VSK-15	0	0	0
Kegco SLK-15	0	0	0
Kegco Z163	1	1	1
Kegco HK38	1	1	2
Kegco XCK-1	1	1	2
Summit SBC677	1	1	1
Summit SBC635	1	1	1
Haier Kegerator	1	1	2*
Danby Kegerator	1	1	1
All Marvel Kegerators	1	1	1
Perlick HP15T	0	0	0
Perlick HP24T	0	1	0
Perlick HC24T	0	1	0
UBC Kegmaster	1	1	2
Beverage Air BM23	1	1	2
Everest EBD1	1	1	1

Brand	5 Gallon D System	5 Gallon Ball Lock	5 Gallon Pin Lock	5 Gallon Strap Handle
Kegco K199	2	2	2	2
Kegco K209	2	3	3	3
Kegco K309	2	3	3	3
Kegco VSK-15	1	1	1	1
Kegco SLK-15	1	1	1	1
Kegco Z163	2	3	2	3
Kegco HK38	3	3	3	3
Kegco XCK-1	4	4	4	4
Summit SBC677	2	3	2	3
Summit SBC635	2	3	3	3
Haier Kegerator	2	3	3	3
Danby Kegerator	2	3	2	3
All Marvel Kegerators	2	3	3	3
Perlick HP15T	1	1	1	1
Perlick HP24T	2	2	1	2
Perlick HC24T	2	2	1	2
UBC Kegmaster	4**	3	4**	4**
Beverage Air BM23	3	4	4	4
Everest EBD1	2	3	3	3

* - Using Wood riser for front keg

** - With external CO2 tank (3 with internal CO2 tank)

Labor - 12 Months

For one year from the date of purchase by the original owner, Kegco will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Kegco will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in this manual. Kegco will provide you with a reasonably similar replacement product that is either new or factory refurbished. In rental or commercial use, the warranty period is 90 days. All Kegco Appliances of 3.5 cubic feet capacity or less must be brought/sent to the appliance service shop for repair.

Parts - 60 Months

For the second through the fifth year from date of original purchase, Kegco Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges. In rental or commercial use, the limited compressor warranty is one year and nine months. Cost to move the appliance to the servicers’ shop and back to the user's home, as may be required, are the user's responsibility.

Additional Details

• Content losses of food or other, due to spoilage.
• Incidental or consequential damages.
• Parts and labor costs for the following will not be considered as warranty:
  • Door springs, and/or frames.
  • Inner door panels, door rails and/or door supports.
  • Light bulbs and/or plastic housing.
  • Plastic cabinet liners.
  • Punctured evaporator that voids the warranty on the complete sealed system.
  • Repairs performed by unauthorized servicers.
  • Shipping and handling costs associated with the replacement of the unit.
  • Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.
  • Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service call to remote areas, including the State of Alaska.
  • Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
  • Replacement of house fuses or resetting circuit breakers.
• Failure of the product if it is used for other than its intended purpose.
• This warranty does not apply outside the Continental USA.
