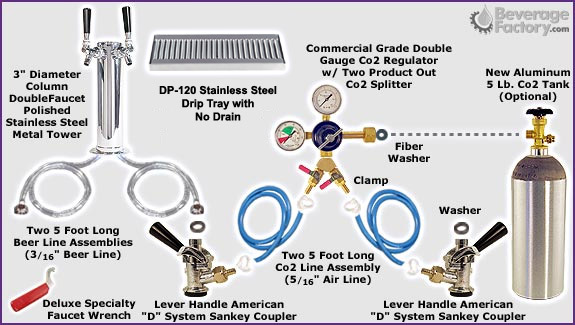

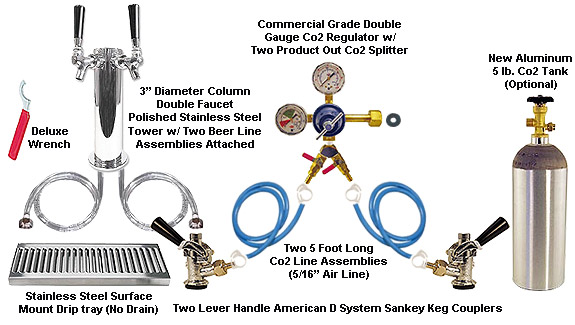

Kegco Deluxe Two Keg Tower DIY Kegerator Conversion Kit

With Kegco's Deluxe Two Keg Tower Kegerator Conversion Kit, you can transform a plain compact refrigerator or chest freezer into your very own draft beer dispenser, complete with a 3" diameter stainless steel draft tower with two faucets and plenty of exciting professional-level features that allow you to enjoy your favorite cold beverage with ease! Drawing on years of beer dispensing experience, Kegco has designed a conversion kit that includes all of the high quality commercial-grade parts you'll need, from the NSF approved American D-System keg couplers to the durable commercial grade double gauge regulator. We've even included a stainless steel drip tray to contain any drips or spills, so clean-up is a breeze! This kit has been designed to dispense two separate kegs, and can run 2 full size kegs, 2 pony kegs, 2 six gallon kegs, or any combination of kegs, depending on your refrigerator's capacity.

3" Diameter, Two Faucet Stainless Draft Beer Tower:
This NSF approved 3-1/2 diameter air-cooled stainless steel draft beer tower with two chrome-plated brass faucets is an excellent choice for two product draft beer dispense systems! It comes complete with two NSF Approved chrome plated metal faucets with brass levers and two black ABS plastic faucet knobs. Two 5' lengths of 3/16" I.D. beer line extend from the bottom of the tower

Commercial Grade Double Gauge Regulator:
Durably constructed to deliver a consistent flow pour after pour, this two product commercial grade dual gauge regulator features a T-style adjustment valve that makes it easy to adjust the pressure inside of the keg. The gauge on top of the regulator indicates CO2 pressure in the keg, while the gauge on the side indicates the remaining volume of CO2 gas. Includes a y splitter and two independent shut-off valves for dispensing up to two kegs at the same keg pressure.

Two Lever Handle D System Keg Couplers:
This NSF-approved commercial grade keg coupler features a sturdy nickel-plated forged brass body with a stainless steel probe, and is designed for use with all domestic brand American D system Sankey kegs. The lever-handle design is easy to use - simply pull out and then down on the handle to couple the keg. A 55-psi pressure relief valve makes this coupler even more convenient to use, allowing over-pressurized gas to escape before it enters your keg.

12" Surface Mount Stainless Steel Tray - No Drain
Designed with style and convenience in mind, this drip tray is constructed from 100% stainless steel and has an attractive brushed finish that will look great on any kegerator. It is dishwasher safe and features a detachable grill for easy cleaning. Because it does not come with a drain, this drip tray is perfect for use where running a drain would be difficult.

Note: CO2 tank is optional add on and shown for reference purposes

WARNING: This product has Brass components. Brass alloys are known to contain trace amounts of Lead, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

• (Optional) Aluminum 5 lb Co2 Tank
  We offer the Co2 Tank as an optional kit component because many people already have one or would like a large tank size. All of our brand new tanks are made from high strength aluminum alloy which is not as heavy as a steel tank and will not rust. If you do not already have a tank, we highly recommend you take advantage of our incredible low price on brand new Co2 tanks.


• YH-762-2 - COMMERCIAL GRADE DOUBLE GAUGE TWO PRODUCT CO2 REGULATOR
  Durably constructed to deliver a consistent flow pour after pour, this two product commercial grade dual gauge regulator features a T-style adjustment valve that makes it easy to adjust the pressure inside of the keg. The gauge on top of the regulator indicates CO2 pressure in the keg, while the gauge on the side indicates the remaining volume of CO2 gas. Includes a y splitter and two independent shut-off valves for dispensing up to two kegs at the same keg pressure.


• 516BAL-5 - TWO 5 FOOT LENGTH OF 5/16 INCH I.D. BLUE AIR LINES
  Our brewery-approved thermoplastic vinyl beverage hose not only meets but exceeds all of the rigid demands for beer dispensing systems. The blue 5/16" I.D. beer line remains flexible and durable at recommended temperatures and pressures, is unaffected by normal cleaning compounds, and will not rot, swell, or dry out.


• 516SNP - PLASTIC REUSABLE CLAMP FOR 5/16 INCH ID TUBING
  This easy-to-use white plastic snap clamp fits 5/16" I.D. (9/16" O.D.) vinyl hose. A tooth-locking mechanism allows you to tighten the clamp without using tools, and the semi-rigid plastic design is reusable and will not corrode over time.


• KT85D-L - TWO D SYSTEM KEG TAPS - BLACK LEVER HANDLES
  This NSF-approved commercial grade keg coupler features a sturdy nickel-plated forged brass body with a stainless steel probe, and is designed for use with all domestic brand American D system Sankey kegs. The lever-handle design is easy to use - simply pull out and then down on the handle to couple the keg. A 55-psi pressure relief valve makes this coupler even more convenient to use, allowing over-pressurized gas to escape before it enters your keg.


• D4743DT-SS - POLISHED STAINLESS STEEL DUAL FAUCET DRAFT BEER TOWER - 3" COLUMN
  This NSF approved 3-1/2 diameter air-cooled stainless steel draft beer tower with two chrome-plated brass faucets is an excellent choice for two product draft beer dispense systems! It comes complete with two NSF Approved chrome plated metal faucets with brass levers and two black ABS plastic faucet knobs. Two 5' lengths of 3/16" I.D. beer line extend from the bottom of the tower. The thermoplastic vinyl beer hose reliably meets all of the demands for beer dispensing systems. It remains flexible and durable at recommended temperatures and pressures, is unaffected by normal cleaning compounds, and will not rot, swell, or dry out.


• DP-125 - SURFACE MOUNT STAINLESS STEEL DRIP TRAY
  Designed with style and convenience in mind, this drip tray is constructed from 100% stainless steel and has an attractive brushed finish that will look great on any kegerator. It is dishwasher safe and features a detachable grill for easy cleaning. Because it does not come with a drain, this drip tray is perfect for use where running a drain would be difficult.


• FWHD - HEAVY DUTY FAUCET WRENCH
  Make repairs and adjustments to your draft beer system like a pro using this heavy-duty faucet wrench. This durable metal wrench has a vinyl coated red or blue handle that provides an easy grip while loosening or tightening shank collars, allowing you to quickly attach or remove your faucets without scratching them.

SPECIAL INSTRUCTIONS:

• When converting a compact refrigerator it is very important to know your internal dimensions of your refrigerator with the door shut to insure that this beer cooler conversion kit will work on your compact refrigerator or chest freezer. To fit a full size keg in a refrigerator, you will need a minimum of 28" Interior Height and 17" width and depth. For a pony keg you will need 18" Interior Height and 17" width and depth. Remember to measure the depth with the door closed. When measuring the Interior Height, be sure to measure from the top of the compressor step bottom shelf. All refrigerators have a compressor step that needs to be accounted for when measuring your interior height.
• Some gas suppliers will not fill a CO2 tank, they will only exchange your CO2 tank for a full one. It is a good idea to find out what options are available in your area so that you don't buy one of our brand new high quality aluminum CO2 tanks, only to have it swapped out for a rusty old steel tank. If you are unsure where to get a tank filled in your area, you can try asking a local beer distributor or doing a local search for fire extinguishers and fire safety equipment. Companies that refill fire extinguishers are generally willing to fill a CO2 cylinder.
• All additional technical questions can be handled by one of our friendly technical support staff by calling toll free 1-800-710-9939.
