Kegco Deluxe Two Keg Tap Door Mount DIY Kegerator Conversion Kit

With Kegco's Deluxe Dual Keg Kegerator Conversion Kit, you'll go from owning a plain refrigerator or freezer to dispensing delicious draft beer from your very own kegerator in no time! Drawing on years of beer dispensing experience, Kegco has designed a kit that includes all of the high quality parts you'll need, from the durable commercial grade double gauge regulator to NSF approved commercial-grade American D-System keg couplers that will easily tap any North American store bought kegs. Depending on your refrigerator's capacity, you will be able to run 2 full size kegs, 2 pony kegs, 2 six gallon kegs, or any combination you choose. To ensure that cleaning up after every use is just as convenient as the initial assembly, we've even included a stainless steel drip tray that will contain any drips. Our kits come complete with a detailed instruction guide, and our helpful product specialists are available at 1-800-710-9939 to answer any of your questions.

Commercial Grade Double Gauge Regulator:
Durably constructed to deliver a consistent flow pour after pour, this two product commercial grade dual gauge regulator features a T-style adjustment valve that makes it easy to adjust the pressure inside of the keg. The gauge on top of the regulator indicates CO2 pressure in the keg, while the gauge on the side indicates the remaining volume of CO2 gas. Includes a y splitter and two independent shut-off valves for dispensing up to two kegs at the same keg pressure.

Lever Handle D System Keg Coupler:
This NSF-approved commercial grade keg coupler features a sturdy nickel-plated forged brass body with a stainless steel probe, and is designed for use with all domestic brand American D system Sankey kegs. The lever-handle design is easy to use - simply pull out and then down on the handle to couple the keg. A 55-psi pressure relief valve makes this coupler even more convenient to use, allowing over-pressurized gas to escape before it enters your keg.

Door Mount Stainless Steel Drip Tray:
Our popular 8" wide door mounted drip tray's clean design and reliable stainless steel construction make it easy to enjoy delicious draft beer every day - mess-free! Installation is simple, thanks to the two conveniently placed screw holes on the backsplash. When it's time to clean, the top vent can be removed for easy access. Because this drip tray does not have a drain, you will need to empty it manually.

Note: CO2 tank is optional add on and shown for reference purposes

WARNING: This product has Brass components. Brass alloys are known to contain trace amounts of Lead, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

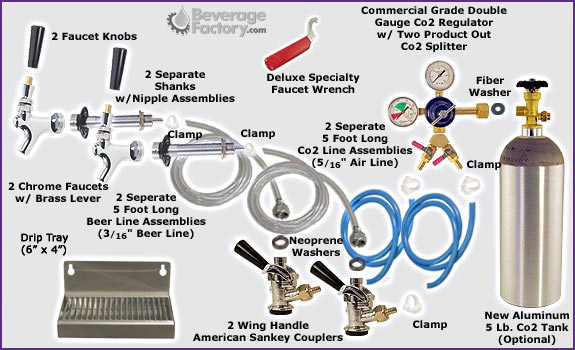

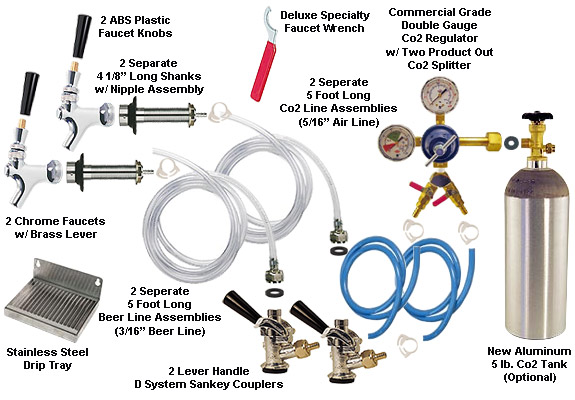

KEGCO PREMIUM KEGERATOR 2 TAP CONVERSION KIT COMPONENTS

• (Optional) Aluminum 5 lb Co2 Tank
  We offer the Co2 Tank as an optional kit component because many people already have one or would like a large tank size. All of our brand new tanks are made from high strength aluminum alloy which is not as heavy as a steel tank and will not rust. If you do not already have a tank, we highly recommend you take advantage of our incredible low price on brand new Co2 tanks.


• YH-762-2 - COMMERCIAL GRADE DOUBLE GAUGE TWO PRODUCT CO2 REGULATOR
  Durably constructed to deliver a consistent flow pour after pour, this two product commercial grade dual gauge regulator features a T-style adjustment valve that makes it easy to adjust the pressure inside of the keg. The gauge on top of the regulator indicates CO2 pressure in the keg, while the gauge on the side indicates the remaining volume of CO2 gas. Includes a y splitter and two independent shut-off valves for dispensing up to two kegs at the same keg pressure.


• 516BAL-5 -TWO 5 FOOT LENGTH 5/16 INCH I.D. BLUE AIR LINES
  Our brewery-approved thermoplastic vinyl beverage hose not only meets but exceeds all of the rigid demands for beer dispensing systems. The blue 5/16" I.D. beer line remains flexible and durable at recommended temperatures and pressures, is unaffected by normal cleaning compounds, and will not rot, swell, or dry out.


• WORM-SM - WORM DRIVE CLAMPS FOR 3/16" OR 5/16" I.D. TUBING
  This durable stainless steel worm drive clamp is easy to install or remove using a flat head screwdriver, affording you a superior grip on your hoses. It fits 3/16" to 5/16" I.D. (up to 9/16" O.D.) vinyl hose or 1/4" to 5/16" I.D. (up to 7/16" O.D.) poly hose. Its sturdy stainless steel construction makes it reusable and resistant to corrosion over time.


• KT85D-L - TWO D SYSTEM KEG TAPS - BLACK LEVER HANDLE
  This NSF-approved commercial grade keg coupler features a sturdy nickel-plated forged brass body with a stainless steel probe, and is designed for use with all domestic brand American D system Sankey kegs. The lever-handle design is easy to use - simply pull out and then down on the handle to couple the keg. A 55-psi pressure relief valve makes this coupler even more convenient to use, allowing over-pressurized gas to escape before it enters your keg.


• BLA316-5 -TWO 5 FEET CLEAR BEER LINES WITH HEXNUT ASSEMBLY
  This clear 3/16" thermoplastic vinyl beer hose reliably meets all of the demands for beer dispensing systems. It remains flexible and durable at recommended temperatures and pressures, is unaffected by normal cleaning compounds, and will not rot, swell, or dry out. Included is 1 Plastic Snap Clamp with a reusable design and a coupling assembly of 1 Stepless Clamp, 1 3/16" Hose Nipple/Tail Piece, and Hex Coupling Nut that connects to keg coupler.


• SHANK4 - TWO 4-1/8" LONG SHANKS WITH NIPPLE ASSEMBLY - 3/16" I.D. BORE
  Our 4-1/8" long forged brass beer shank features a black flange on the front and a compression ring on the back, making it easy to secure the shank to a mounting surface to attach beer line to your faucet. The shank comes fitted with a tail piece for connecting to 3/16" I.D. beer line.


• FKNB - TWO BLACK PLASTIC BEER FAUCET KNOBS
  Looking for a stylish and reliable tap handle that won't break the bank? This durable ABS plastic faucet knob has a sleek and glossy black finish that gives any draft beer setup an elegant look at an affordable price. The 2-5/8" tall knob has 3/8" -16 UNC lever threads and fits all US beer faucets.


• CFBL - TWO CHROME BEER FAUCETS WITH BRASS LEVERS
  Featuring a forged brass body and highly polished chrome finish, this NSF-approved beer faucet puts a stylish finishing touch on your kegerator at a price you'll love. The brass shaft assembly and lever includes a non-stick ball washer for smooth operation, and the lever has standard threading that is compatible with most branded tap handles.


• SEWM-86 - STAINLESS STEEL WALL MOUNT DRIP TRAY - NO DRAIN
  Our popular 8" wide door mounted drip tray's clean design and reliable stainless steel construction make it easy to enjoy delicious draft beer every day - mess-free! Installation is simple, thanks to the two conveniently placed screw holes on the backsplash. When it's time to clean, the top vent can be removed for easy access. Because this drip tray does not have a drain, you will need to empty it manually.


• FWHD - HEAVY DUTY FAUCET WRENCH
  Make repairs and adjustments to your draft beer system like a pro using this heavy-duty faucet wrench. This durable metal wrench has a vinyl coated red or blue handle that provides an easy grip while loosening or tightening shank collars, allowing you to quickly attach or remove your faucets without scratching them.

SPECIAL INSTRUCTIONS:

• When converting a compact refrigerator it is very important to know your internal dimensions of your refrigerator with the door shut to insure that this beer cooler conversion kit will work on your compact refrigerator or chest freezer. To fit a full size keg in a refrigerator, you will need a minimum of 28" Interior Height and 17" width and depth. For a pony keg you will need 18" Interior Height and 17" width and depth. Remember to measure the depth with the door closed. When measuring the Interior Height, be sure to measure from the top of the compressor step bottom shelf. All refrigerators have a compressor step that needs to be accounted for when measuring your interior height.
• Some gas suppliers will not fill a CO2 tank, they will only exchange your CO2 tank for a full one. It is a good idea to find out what options are available in your area so that you don't buy one of our brand new high quality aluminum CO2 tanks, only to have it swapped out for a rusty old steel tank. If you are unsure where to get a tank filled in your area, you can try asking a local beer distributor or doing a local search for fire extinguishers and fire safety equipment. Companies that refill fire extinguishers are generally willing to fill a CO2 cylinder.
• All additional technical questions can be handled by one of our friendly technical support staff by calling toll free 1-800-710-9939.
UPC: 608938443236
